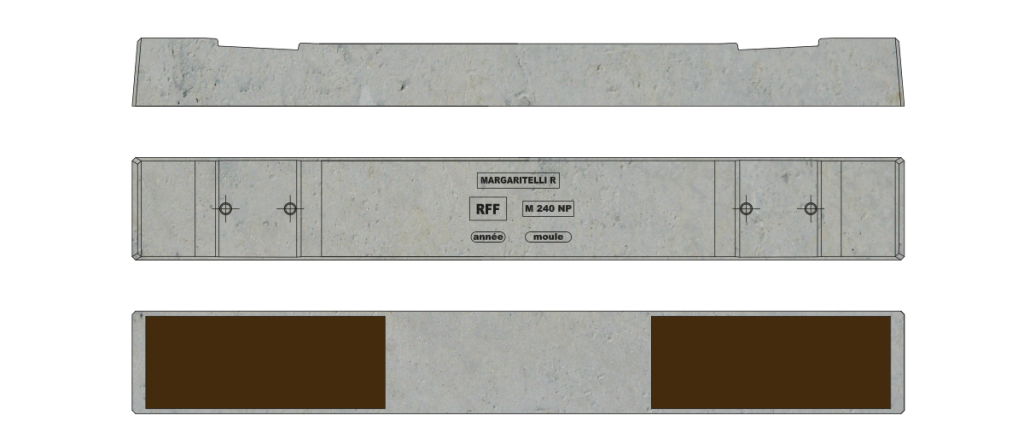

M 240 NP/NV

CONCRETE SLEEPER FOR TRADITIONAL LINES (SPEED ≤ 250 km/h)

Margaritelli Ferroviaria

In accordance with EN 13230-1/2
and Technical Specification SNCF IG04026


Lenght: 2260 mm
Width: 300 mm
Depth at rail seat: 170/173 mm
Mass: 300 kg


Mdr ≥ +10,00 kNm positive design bending
moment at the rail seat
Mdcn ≥ -17,80 kNm negative design bending
moment at the center
Mdc ≥ +8,90 kNm positive design bending
moment at the center

Available with USP in accordance with Technical
Specification SNCF CT IGEV 016
