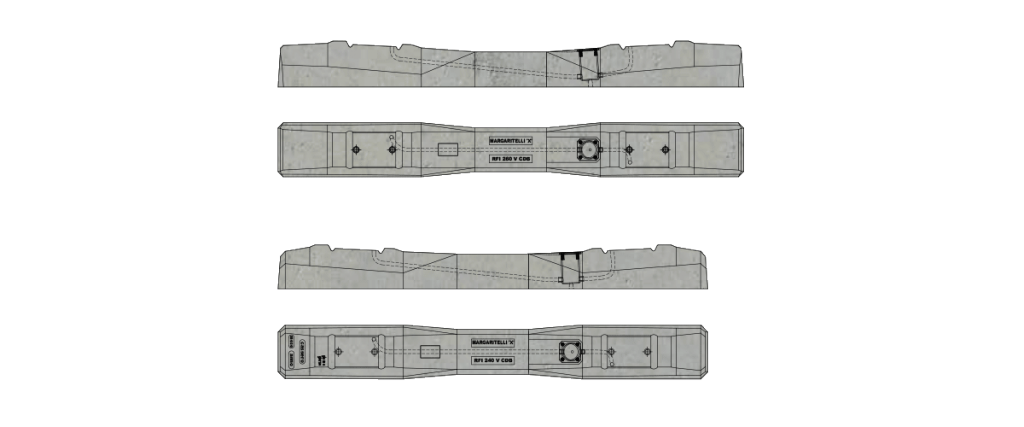

RFI 260 V AV CDB, RFI 260 V CDB, RFI 240 V CDB

CONCRETE SLEEPER FOR TRADITIONAL LINES (SPEED ≤ 250 km/h) AND FOR HIGH SPEED LINES (SPEED ≥ 250 km/h) WITH HOUSING FOR CAPACITOR

Margaritelli Ferroviaria

In accordance with EN 13230-1/2
and Technical Specification RFI TCAR SF AR 03 002


Lenght: 2400 mm, 2600 mm
Width: 300 mm
Depth at rail seat:
RFI 240 V CDB: 220 mm
RFI 260 V AV CDB, RFI 260 V CDB: 230 mm
Mass:
RFI 240 V CDB: 316 kg
RFI 260 V AV CDB, RFI 260 V CDB: 369 kg


Mdr, Mdcn, Mdc: design bending moments
the same as standard sleepers RFI 240 and RFI 260
Available with USP in accordance
with Technical Specification RFI TCAR SF AR 03 008
