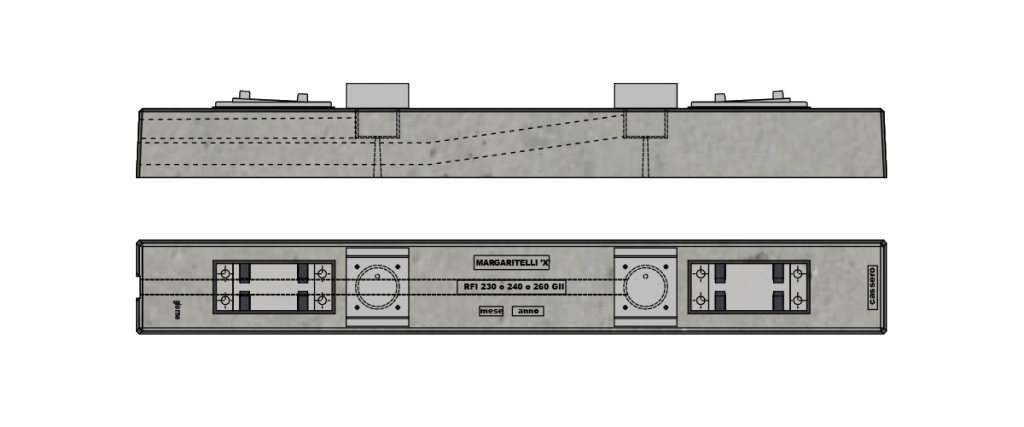

RFI 230 GII, RFI 240 GII, RFI 260 GII

CONCRETE SLEEPERS WITH FAIRLEADS FOR INSULATING JOINTS

Margaritelli Ferroviaria

In accordance with EN 13230-1/2
and Technical Specification RFI TCAR SF AR 03 002


Lenght: 2300 mm, 2400 mm, 2600 mm
Width: 300 mm
Depth at rail seat: 220 mm
Mass: 369 kg, 384 kg, 416 kg


Mdr, Mdcn, Mdc: design bending moments
the same as standard sleepers RFI 230,
RFI 240 and RFI 260
